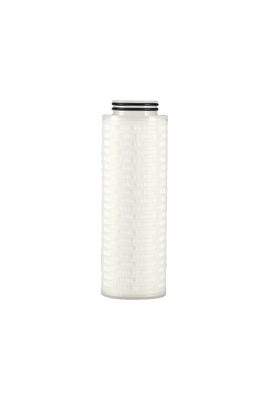

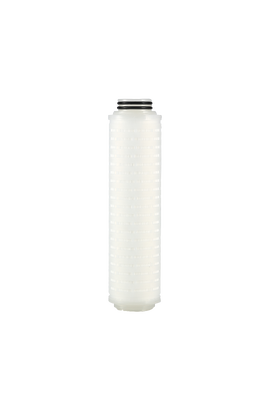

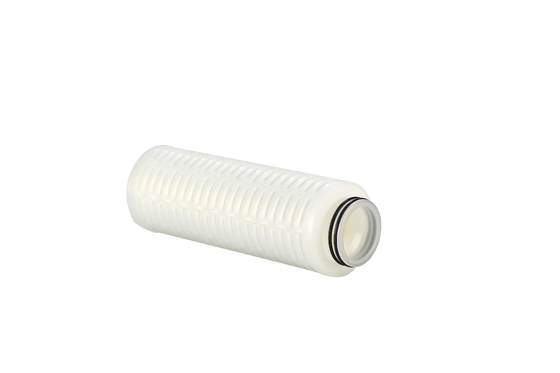

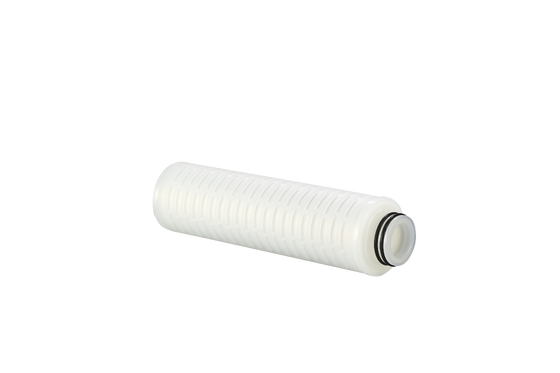

PLPT / PLPTH Series PTFE Membrane Filter Cartridge
Product Overview
PLPT / PLPTH Series PTFE membrane filter cartridges are engineered for high-precision filtration of corrosive chemicals, oxidizing liquids, etching solutions, stripping liquids, and other demanding process fluids.
The PLPT series utilizes naturally hydrophobic PTFE membrane, delivering exceptional chemical resistance, corrosion resistance, and stable filtration performance in strong corrosive liquid applications.
The PLPTH series employs modified hydrophilic PTFE membrane, enabling direct liquid filtration without pre-wetting treatment. This reduces operation time, simplifies filtration procedures, and enhances process efficiency.
With high particle retention efficiency, extensive chemical compatibility, and multiple micron rating options, this series is ideal for chemical processing, semiconductor manufacturing, electronics, and high-purity liquid filtration applications.
Key Features
- Excellent Chemical Compatibility: PTFE membrane provides outstanding resistance to strong acids, alkalis, oxidizing agents, corrosive chemicals, etching liquids, and stripping solutions. Suitable for demanding liquid filtration conditions where ordinary filter media may not perform reliably.
- High Particle Retention Efficiency: The PTFE membrane offers excellent particle capture capability with up to 99.99% particle interception efficiency, ensuring stable filtrate quality in precision filtration processes.
- Hydrophobic and Hydrophilic PTFE Options: PLPT series uses natural hydrophobic PTFE membrane for applications requiring strong chemical resistance and hydrophobic performance. PLPTH series uses hydrophilic PTFE membrane for direct liquid filtration without pre-wetting, enabling easier and more efficient operation.
- Multiple Filtration Precision Options: Filtration ratings from 0.01 μm to 10 μm available to meet different process requirements. Customized micron ratings can also be provided according to application needs.
- 100% Integrity Inspection Before Delivery: Each filter cartridge undergoes inspection before shipment to ensure stable quality, reliable sealing performance, and consistent filtration efficiency.
Technical Specifications
| Item |
Specification |
| Product Series |
PLPT / PLPTH Series |
| Filter Media |
PLPT: Hydrophobic PTFE membrane; PLPTH: Hydrophilic PTFE membrane |
| Cage / Core / End Caps |
PP / PBT |
| Micron Rating |
0.01 μm - 10 μm |
| Maximum Operating Temperature |
70°C / 120°C |
| Maximum Operating Differential Pressure |
4 bar @ 21°C; 2.4 bar @ 70°C |
| Filtration Efficiency |
Up to 99.99% particle interception efficiency |
| Inspection |
100% integrity inspection before delivery |
| Customization |
Micron rating, length, end cap type, sealing material and connection type can be customized |
Material Construction & Performance
| Component |
Specification |
| Filter Media |
PTFE molded film |
| Cage/Core/End Caps |
PFA, PTFE, PBT |
| Maximum Operating Temperature |
170℃ |
| Maximum Operating Differential Pressure |
4bar @50℃
3bar @110℃
1.7bar @170℃ |
Filter Performance
| Parameter |
Specification |
| Removal Rating |
0.03-1μm |
| Max. Operating Temperature |
170℃ |
Ordering Information
| Series |
Micron |
Length |
End Cap Type |
Seal Material |
| PLPT PLPTH |
0001=0.01μm |
0050=0.5μm |
05=5" |
C5=222/Flat |
E=EPDM |
| 0002=0.02μm |
0100=1.0μm |
10=10" |
C6=226/Flat |
P=FEP |
| 0005=0.05μm |
0300=3.0μm |
20=20" |
C9=DOE |
V=FKM |
| 0010=0.1μm |
0500=5.0μm |
30=30" |
|
PN=F-FKM |
| 0020=0.2μm |
1000=10μm |
40=40" |
|
|
Recommended Industries
| Industry |
Application |
| Semiconductor |
Etching liquid, stripping liquid, high-purity chemical filtration |
| Electronics |
Process chemical filtration, precision liquid filtration |
| Chemical Processing |
Strong acid, alkali, solvent and oxidizing liquid filtration |
| Industrial Manufacturing |
Corrosive liquid pre-filtration and final filtration |
| High-Purity Liquid Processing |
Fine particle removal and process protection |
Support & Services
We provide comprehensive technical support for installation, operation, and maintenance, including filter replacement guidance and maintenance recommendations. Complete documentation includes user manuals, installation guides, and troubleshooting notes.
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.
Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.
The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.
Frequently Asked Questions
Q1: Who is the manufacturer and brand?
A1: Manufacturer: Shanghai Pullner Filtration Technology Co., Ltd. / Brand: Pullner.
Q2: Can you provide samples?
A2: Yes. We can provide 1-2 free samples for evaluation. Buyers only cover shipping. (Free samples are typically supported for future formal orders.)
Q3: What is the delivery time?
A3: Usually 5-10 working days, depending on order quantity.
Q4: Is the filtration rating nominal or absolute?
A4: Standard products are nominal. Absolute-rated filters can be customized based on your application.
Q5: Which brands can your filters replace?
A5: Compatible replacements include major brands such as PALL, 3M, PARKER, and others.
Q6: What is the MOQ?
A6: Standard MOQ is 1 piece (factory direct). For certain models or customized specs, MOQ may vary.
